Usage

IF YOU ARE PLANNING TO PACK THESE SCRIPTS INTO YOUR MAP THEN READ THE Usage For Mappers SECTION.

Do note that these scripts will unload themselves on mission/wave reload. So be sure to load the scripts again whenever that occurs for your mission. (Can be done through an InitWaveOutput on every wave or a single PointTemplate.)

Extra usages are found in the Example Popfile. Such as adding tank icons, creating paths, or overriding tank type values.

To add any of these custom tanks to your mission you first need to include the main script and any tank scripts of your choosing. This can be done through a RunScriptCode output on bignet or added to your own mission script file if you have one.

// This popfile example loads the main script, two optional tank scripts, and two other scripts for one of the tanks
// You can include as many tank scripts as needed
InitWaveOutput
{
    Target bignet
    Action RunScriptCode
    Param
    "IncludeScript(`tankextensions_main`)
    IncludeScript(`tankextensions/combattank`)
    IncludeScript(`tankextensions/combattank_weapons/minigun`)
    IncludeScript(`tankextensions/combattank_weapons/rocketpod`)
    IncludeScript(`tankextensions/tankdozer`)"
}

Alternatively if you're on a server that uses RafMod, you can use a PointTemplate within WaveSchedule so you only have to load the scripts once.

PointTemplates
{
    Scripts
    {
        OnSpawnOutput
        {
            Target bignet
            Action RunScriptCode
            Param
            "IncludeScript(`tankextensions_main`)
            IncludeScript(`tankextensions/combattank`)
            IncludeScript(`tankextensions/combattank_weapons/minigun`)
            IncludeScript(`tankextensions/combattank_weapons/rocketpod`)
            IncludeScript(`tankextensions/tankdozer`)"
        }
    }
}
SpawnTemplate Scripts

Once the scripts are included, set the Name keyvalue of any tank in your popfile to one that the scripts provide.

Tank
{
    Name "combattank|minigun|rocketpod"
    Health 30000
    Speed 75
    StartingPathTrackNode "tank_path_1"
    OnBombDroppedOutput
    {
        Target boss_deploy_relay
        Action Trigger
    }
}

All custom tanks and information on what can be put into the Name keyvalue are in the Tank Types section.

Tank names and script functions are listed further down the documentation. If you want to make a new tank type yourself then refer to the example tank script.

Usage For Mappers

If you plan to pack these scripts into your map so its missions can use custom tanks then pack the MAP SPECIFIC SCRIPTS instead of packing the main scripts. This is done so if the map were to be used on other servers that use a more updated version of TankExtensions then there would be no conflicts between the server's file and the map's file (packed map scripts always override server scripts).

With the map scripts packed in you will want to make your own script file that loads the main script and tank scripts. Use a logic_script entity to load up your created script file. Do not use this entity to load the tank scripts directly or else the tank scripts will not function. The example below shows what the contents of your created script file could look like.

// Example script file path "scripts/vscripts/mymapname.nut"
// logic_script's "Entity Scripts" should be set to that new script's name ("mymapname")

// This nutfile example loads the packed main script, two optional tank scripts, and two other scripts for one of the tanks
// You can include as many tank scripts as needed
IncludeScript("tankextensions_main_packed")
IncludeScript("tankextensions_packed/combattank")
IncludeScript("tankextensions_packed/combattank_weapons/minigun")
IncludeScript("tankextensions_packed/combattank_weapons/rocketpod")
IncludeScript("tankextensions_packed/tankdozer")

The people who write the missions will not have to use the InitWaveOutput block to load the tank scripts that are already loaded by the map's script file and just have to name their tank according to the loaded tank scripts.

For scripters working on the map, TankExtensions's custom functions will use a TankExtPacked prefix instead of TankExt

Path Maker

Path Maker allows for quickly creating paths without the need for going around the map using getpos or opening the hammer editor.

If tankextensions_main is loaded, Path Maker can be ran using this command: ent_fire !activator runscriptcode "TankExt.PathMaker(self)". Optionally, it accepts an additional parameter of a path name to load all paths connected to it "TankExt.PathMaker(self, `tank_path_1`)". Replace ent_fire with sm_ent_fire if on a testing.potato.tf server.

Path Maker Models

Axis nodes are your placed path nodes; your selected node will have a yellow outline if your selection is locked, otherwise it will have a cyan outline. Unlocking the selection will select the closest node available. Locking the selection will disallow selecting other nodes, adding or deleting paths while locked will change the selection to the next or previous node respectively.
Cyan guides are path nodes that already exist in the map, their targetname will be shown above them and will point towards their next path node.
The magenta guide is the best position for the last path node so that tanks will be properly aligned while deploying the bomb. An axis node can be placed here by using the given key combo on screen.

Visualizers are available to preview how tanks will go across the path or how a tank will be oriented under your cursor. The model type can be cycled between tanks and blimps.

If you have finished placing path nodes you can print them to console with TankExt, PopExt+, or Rafmod formatting.
Also, note that TankExtensions's CreatePaths function will merge the last node to a node in the map if they share the same position.

Tank Types

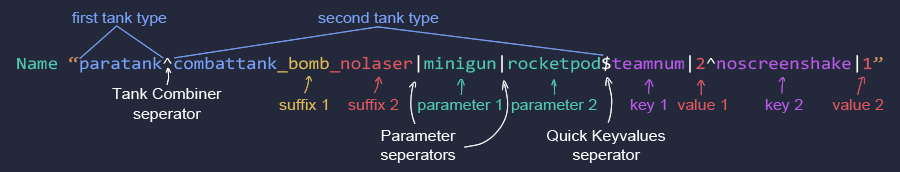

The table below provides details on what can go into a tank's Name keyvalue. You should first know the following formatting required to modify the listed tank types.

A big tank name

Tank Combiner lets a single tank use multiple tank scripts at once. Separate the individual tank names with ^. A tank script with a defined keyvalue such as its model will override the same keyvalue from any other tank script to its right (sentrytank^redtank will only use the sentrytank model and not the redtank model).

Suffixes are optionally appended to the tank's name for different effects. tankName + _suffix1 + _suffix2 = tankName_suffix1_suffix2.

Parameters are separated by | and can modify aspects of a tank type. Depending on the tank type, each parameter will either use names, values, or be entirely optional. A tank with 2 parameters can be written as tankboss|parameter1|parameter2

Quick Keyvalues allow for making slight modifications to a tank, unrelated to a tank type. The start of a keyvalue list is denoted with $, the values of the keys are separated with |, and each keyvalue pair is separated with ^. tankName$targetname|tankboss^teamnum|2^scale|0.5 Results in a tank on red team named tankboss with a halved scale.

List of Keyvalues
Keyvalue Description
color Colors the tank, tracks, and bomb mechanism. "255 127 0" would result in an orange tank.
disablebomb Set to 1 to only hide the bomb mechanism.
disablechildmodels Set to 1 to hide the tank's tracks and bomb mechanism.
disableoutline Set to 1 to hide the tank's outline that is normally visible through walls.
disablesmokestack Set to 1 to hide the tank's smokestack.
disabletracks Set to 1 to only hide the tank's tracks.
engineloopsound Accepts a sound path string to replace the tank's looping sound. Normally this sound is for the rumbling of the engine and the movement of the tank tracks.
gravity Sets the gravity of the tank to the inputted value, enables UseCustomLocomotion.
maxstepheight Allows the tank to climb over steps that are within the value's height.
maxturnrate Changes how fast the tank turns, enables UseCustomLocomotion.
model Accepts a model path string that replaces the body of the tank.
nodestructionmodel Set to 1 to hide the tank's explosion animation. Does not get rid of the explosion particle.
noscreenshake Set to 1 to disable the screenshake effect that occurs when standing near the tank.
pingsound Accepts a sound path string to replace the tank's ping noise that occurs every 5 seconds.
scale Sets the tank's model scale value.
targetname Sets the tank's name, purely for I/O targetting reasons. Tank Types and AddTankIcon will still use the tanks initial name for their logic.
teamnum Sets the tank's team value. 2 is for red, 3 is for blue.
usebettertracks More dynamically animated tracks: much higher speed cap, scales with tank scale, can move backwards, stops animating when airborne. A value of 2 will allow the tracks to animate with Gravity 0
usecustomlocomotion Uses tankext's version of the tank locomotion with no path overshoot, speed proportionate turning, and modifiable gravity. A value of 2 uses alternative floor detection that allows the tank to go over grating, glass, or clip brushes.

ScriptFunctions are not part of a tank's name but they can be ran by firing a CallScriptFunction input on the tank with the param being the script function name.

// You can use a dummy wavespawn to call these script functions in vanilla
WaveSpawn
{
    WaitForAllDead "w4b"
    FirstSpawnOutput
    {
        Target "ubertank|0|-1"
        Action CallScriptFunction
        Param "ToggleUber"
    }
}
Script File Tank Names Suffixes Parameters ScriptFunctions Description
bannertank.nut bannertank

_backup

_buff

_conch

_noselfeffect

 AddBannerBackup
AddBannerBuff
AddBannerConch
RemoveBannerBackup
RemoveBannerBuff
RemoveBannerConch

Example: bannertank_backup_buff_conch (Uses the effects of Battalion's Backup, Buff Banner, and Concheror)

Applies the selected banner effects to all teammates within a 540hu radius. The tank by default will also gain these same effects, you can disable them using the _noselfeffect suffix.
blimp.nut blimp

_customparticles

color

Example: blimp (Uses team colors), blimp|255 127 0 (Applies an orange color)

Same as a normal tank but it traverses the sky. First parameter sets the color of the blimp in RGB format, can be left blank to use team colors. The _customparticles suffix will emit particles from the blimp if the map is packed with the provided particle file.

Blimp model by Glitch and ZoraKirby
Particles by Cheesypuff

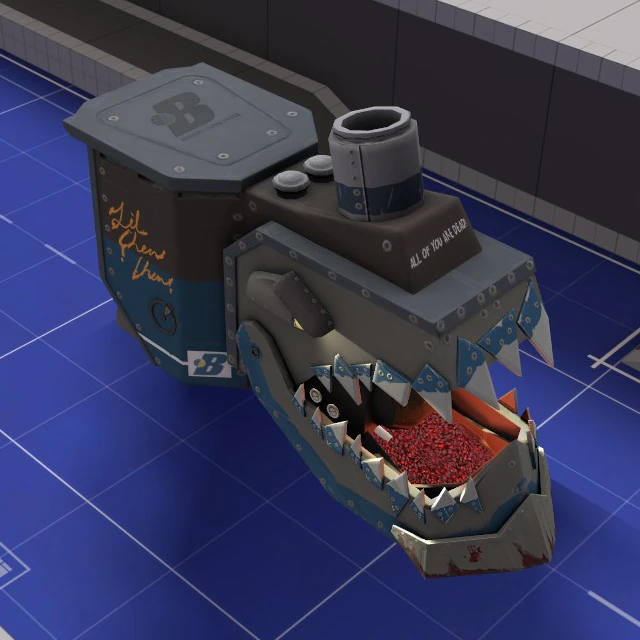

chewchewtank.nut chewchewtank

Li'l Chew Chew from pl_frontier but in tank form. Each bite deals 1000 damage and does not effect giants.

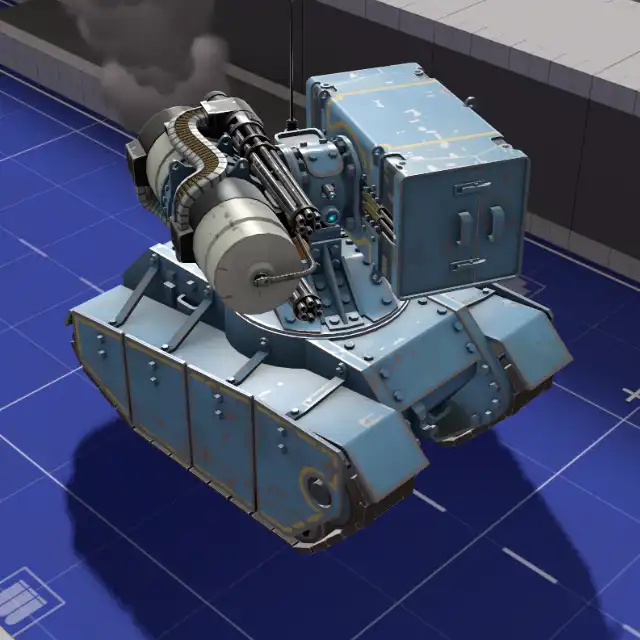

combattank.nut combattank

_bomb

_nolaser

right_weapon

left_weapon

 ToggleUber

Example: combattank_bomb|minigun|rocketpod (Can deploy a bomb, is equipped with a minigun on its right and rocketpod on its left))

Weaponized tank. This comes with its own script files for each weapon within scripts/vscripts/tankextensions/combattank_weapons/. Load those scripts like you would with tanks; the weapon names go into either of the tank's parameters.

List of CombatTank Weapons
Script File Weapon Names Description
fireball.nut fireball Shoots Dragon's Fury fireballs at double the fire rate.
minigun.nut minigun Behaves similarly to a Giant Heavy with a minigun.
railgun.nut railgun Charges up a slow burst of 3 high damage headshots before going on a 8s cooldown.
rocketpod.nut rocketpod
rocketpod_homing		 Behaves similarly to a Giant Burst Fire Soldier. rocketpod_homing uses homing rockets.
cannon.nut cannon Note: Cannot use additional weapons.
Shoots a very high damage rocket that travels at a very high speed every 3s.

This tank has an optional bomb attachment, by default the tank will not spawn with a bomb mechanism for use with looping paths. The _bomb suffix will add a bomb mechanism if desired. The _nolaser suffix hides the laser beam permanently. ToggleUber makes the tank invulnerable until the function is called again.

Tank and weapon models by Charlie

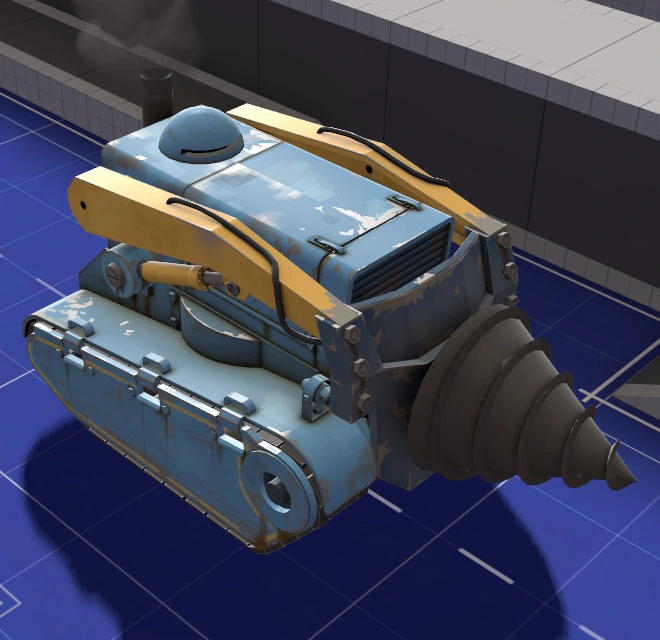

drilltank.nut drilltank

Adds a big drill to the front of the tank. Deals 50 damage to the victim every 0.33 seconds (150 dps) which apply bleed and 75% movement stun for 1 second. Deals no damage while in the bomb deploy sequence.

Drill model by KrazyZark
exampletank.nut exampletank

This tank serves no purpose other than to show the basics in making a tank type.
fireringtank.nut fireringtank

Every 0.5 seconds a ring of fire will emit from the tank which ignite enemies.

Concept by Bazooks
frontlinecart.nut frontlinecart _crit

projectile_shortrange

projectile_longrange

Example: frontlinecart_crit|grenade|rocket (All projectiles crit, shoots grenades at short range and rockets at long range)

Small mobile turret that shoot a chosen projectile at 5 angles. Allows 2 parameters of: rocket, grenade, jarate, milk, gas. First parameter is the normal projectile type and the second parameter is the close range projectile type. The second parameter can be left blank to not switch to close ranged projectiles. The _crit suffix makes all projectiles crit.

Cart model from the Frontline Supply Drop
gatetank.nut gatetank

path_track_name_1

path_track_name_2

path_track_name_3

...

Example: gatetank|path_10|path_17|path_24|path_30|path_35 (Will make stops at 5 path nodes and capture its closest gate)

Allows the tank to capture gates when it reaches the specified path names. There can be as many parameters as needed and the inputted path names will find a gate trigger that is closest to the path_track.

Tank model by Diva Dan
hammertank.nut hammertank

Adds a giant Necro Smasher onto the tank. Activates when an enemy is within a 256hu radius from its smashing position. Deals 2500 damage to enemies within a 128hu radius or pushes enemies away within a 384hu radius upon smashing. Has a 2.6 second cooldown after smashing.

Concept from Sntr's Lost Valley
helicopter.nut helicopter _crit _customparticles

color

Example: helicopter (Uses team colors), helicopter_crit|255 255 255 (All projectiles crit and the model is applied with a white color)

Traverses the sky (like a blimp), aims and shoots rockets at enemies (like a combattank), shoots a burst of stickies at enemies (like a stickytank), and can deploy the bomb (like a tank). The _crit suffix makes all projectiles crit and the _customparticles suffix will use fancy particle effects if the map is packed with the provided particle file.

Inspired by Royal's Dover 2 mission
Helicopter model by Glitch, ZoraKirby, and canpake
Particles by Cheesypuff
jumptank.nut jumptank Jump

Causes the tank to jump high in the air periodically. When the tank is falling it will crush enemies beneath it, instantly killing them. When landing it will push enemies away. Set JUMPTANK_JUMP_COOLDOWN to a value below 0 to disable automatic jumping for all jumptanks. Setting JUMPTANK_USE_SPECIAL_DEPLOY to true will change how the deploy sequence looks.
painttank.nut painttank

color

Example: painttank|255 127 0 (Applies an orange color)

A tank model that allows for more colors much like adding paints for hats. First parameter is the color of the tank in RGB format.

Tank model by CTriggerHurt
paratank.nut paratank

Adds a parachute to the tank. If there's no floor underneath the tank then it will move towards path nodes similarly to a blimp until there's ground again. This will usually require a custom tank path so the tank's descent doesn't look unnatural.

Parachute model from PenolAkushari's Silent Sky
redtank.nut redtank

Changes the tanks team to red and swaps the tank model with a red textured version. Useful when combined with other tank types that don't have custom models.

Tank model by lite
scaletank.nut scaletank

scale_lowhealth

Example: scaletank|0.3 (Scales to 0.3x its normal size at low health)

Tank will resize itself as its health gets lower. First parameter is the resulting scale when at low health.
sentrytank.nut sentrytank

Adds an invincible level 3 sentry ontop of the tank. The sentries cannot attack enemies that are directly beside the tank. Sappers destroy themselves after 8 seconds if placed on either of the sentries, Red-Tape Recorder does not degrade their levels. Can heal allies in a large radius similar to a level 3 dispenser.

Tank model by Diva Dan
speedtank.nut speedtank

speed_lowhealth

Example: speedtank|200 (Moves at 200 hu/s at low health)

Tank will alter its speed as its health gets lower. First parameter is the resulting speed when at low health.

Tank model and particles by Diva Dan
stickytank.nut stickytank

Fires a barrage of non-crit and crit stickies in front of the tank. Stickies detonate 6.5 seconds after the tank began firing.

Concept by Hell-met
Turret model by lite
tankdozer.nut tankdozer _nosentry

An armored tank with a 6000hp level 2 sentry ontop, can only be damaged by shooting the non-armored areas. Players will be crushed by the tanks scoop when they come in contact with it. Sappers destroy themselves after 10 seconds when placed but deal extra damage to the sentry. (500 health across 10 seconds)

Concept from Sntr's Rust Valley
Tank armor model by Charlie

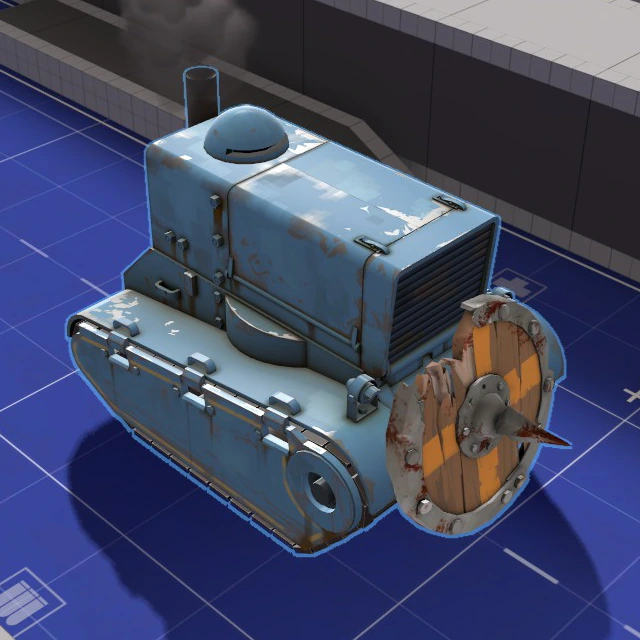

targetank.nut targetank
targetank_color

Charges similarly to demo's shields. The tank slows down to 15hu/s on the first 2 seconds then speeds up to 300hu/s for 3 seconds. Has a recharge duration of 10 seconds. Hitting an enemy deals 75 damage and high knockback. targetank_color sets the model to the PaintTank, the color reflects the tank's current charge meter (oranger when about to start a charge and redder after completing the charge.)

Concept by PDA Expert
teletank.nut teletank

Places a fake teleporter ontop of the tank that teleport spawned bots with the bot_teletank tag. Teleported bots will spawn with 1 second of ubercharge. Can heal allies in a large radius similar to a level 3 dispenser.

Concept by dexc34
Tank model by Diva Dan
ubertank.nut ubertank

uber_wait_time

uber_duration

 ToggleUber

Example: ubertank|5|8 (Ubers 5s after spawning, uber lasts 8s), ubertank|-1|-1 (Will not automatically uber, infinite duration)

Has the ability to become invulnerable for a defined amount of time. First parameter is the amount of time after spawning until the tank becomes ubered and the second parameter is the duration of the uber. Setting either parameter to -1 will disable that parameter's functionality. ToggleUber flips the uber state, if a duration is set then it will automatically toggle back off after the given time.

Tank model by lite
vactank.nut vactank
vacblimp 		_bullet
_blast
_fire

Example: vactank_bullet_blast_fire

Adds any combination of the Vaccinator's uber effects to the tank. Appending _bullet, _blast, or _fire will resist the chosen damage types. vacblimp will use the blimp version of the model, intended to be combined with the blimp. (blimp^vacblimp_bullet_blast_fire)

Vaccinator Tank bubble model by Tumby
Vaccinator Blimp bubble model by lite
Functions

This section only serves a purpose for people who are very familiar with working on vscript files.

Always prepend TankExt. to any of these functions when using them. (i.e NewTankType() becomes TankExt.NewTankType())

Function Signature Description
AddTankIcon void AddTankIcon(integer tankCount, string tankIcon, string tankName, integer index = null) Adds a custom tank icon to the wavebar. The tank name parameter accepts wildcards.
AddThinkToEnt void AddThinkToEnt(handle entity, string FuncName) Wrapper for AddThinkToEnt. If the entity is a tank then it will add the think function to its think table. If PopExt+ is loaded then it will use the renamed native function.
ApplyTankTableByName void ApplyTankTableByName(handle tank, handle path, string tankType) Looks for a tank type that matches the inputted tank's name then applies what is given by the table.
ApplyTankType void ApplyTankType(handle tank) Called by any path_track entity. First checks for any quick keyvalues, then runs ApplyTankTableByName.
ApproachAngle float ApproachAngle(float target, float input, float speed) Rotates the inputted value by the speed value towards the target value. The returned angle value is normalized.

From the TF2 VScript Examples page
Clamp float Clamp(float input, float low, float high) If the input is below the low value, returns the low value. If above the high value, returns the high value.
CreateLoopPaths void CreateLoopPaths(handle table) Similar to CreatePaths except it can make paths loop forever. The last node of each path must use the same position as a previously defined node.
CreatePaths void CreatePaths(handle table) Can create multiple paths.
DelayFunction void DelayFunction(handle entity, handle scope, float delay, handle function) Delays a function and calls it after the specified time. If an entity is defined then it will use its ScriptScope and can only call when the entity exists. The used scope can be overriden by the second parameter. The first two parameters can be left null if neither are needed.
DispatchParticleEffectOn void DispatchParticleEffectOn(handle entity, string name, string attachment = null) Spawns a particle and attaches it to the entity. Can be placed on a model's attachment if defined.
ExtraTankKeyValues void ExtraTankKeyValues(handle tank, handle path, handle table) Used by ApplyTankType and ApplyTankTableByName to implement the keyvalue functions listed in NewTankType.
GetMultiScopeTable handle GetMultiScopeTable(handle scope, string tankType) Returns the scope of a tank type within its MultiScope table. Returns null instead if MultiScope doesn't exist or if the name isn't in the MultiScope
HasTankPathOutput bool HasTankPathOutput(handle path) Returns true if the entity has TankExtensions's required path output. This is used automatically and never needs to be used manually.
IntersectionBoxBox bool IntersectionBoxBox(Vector origin1, Vector mins1, Vector maxs1, Vector origin2, Vector mins2, Vector maxs2) Returns true if the first bounding box intersects with the second bounding box.
IterateIcons void IterateIcons(handle callback) Allows for easier reading and writing of the wavebar icon netprops. The inputted function needs 4 parameters (iIndex, sNames, sCounts, sFlags). Returning true will break the loop.
IsPlayerStealthedOrDisguised bool IsPlayerStealthedOrDisguised(handle player) Returns true if the player is fully cloaked or has a disguise except when burning, jarated, or bleeding. Always returns false if the entity is not a player.
NewTankType void NewTankType(string name, handle table) Adds the inputted table with the specified name to the TankScripts or TankScriptsWild table which get ran when a tank with a matching name spawns.
List of Keyvalues
Keyvalue Description
Color Colors the tank, tracks, and bomb mechanism. "255 127 0" would result in an orange tank.
DisableBomb Set to 1 to only hide the bomb mechanism.
DisableChildModels Set to 1 to hide the tank's tracks and bomb mechanism.
DisableOutline Set to 1 to hide the tank's outline that is normally visible through walls.
DisableSmokestack Set to 1 to hide the tank's smokestack.
DisableTracks Set to 1 to only hide the tank's tracks.
EngineLoopSound Accepts a sound path string to replace the tank's looping sound. Normally this sound is for the rumbling of the engine and the movement of the tank tracks.
Gravity Sets the gravity of the tank to the inputted value, enables UseCustomLocomotion.
MaxStepHeight Allows the tank to climb over steps that are within the value's height.
MaxTurnRate Changes how fast the tank turns, enables UseCustomLocomotion.
Model Accepts a model path string or a table of multiple model path strings. The keyvalues for a table are: Tank, Damage1, Damage2, Damage3, LeftTrack, RightTrack, Bomb.
NoDestructionModel Set to 1 to hide the tank's explosion animation. Does not get rid of the explosion particle.
NoScreenShake Set to 1 to disable the screenshake effect that occurs when standing near the tank.
OnDeath This function is called when the tank dies, exactly like SetDestroyCallback.
OnSpawn This function is called within its own tank type scope, comes with variables: self, sTankName, hTankPath. You can add a think function to the tank by defining a function named Think(). Think functions also come with variables: flTime, vecOrigin, angRotation, iTeamNum, iHealth, iMaxHealth.
PingSound Accepts a sound path string to replace the tank's ping noise that occurs every 5 seconds.
Scale Sets the tank's model scale value.
TargetName Sets the tank's name, purely for I/O targetting reasons. Tank Types and AddTankIcon will still use the tanks initial name for their logic.
TeamNum Sets the tank's team value. 2 is for red, 3 is for blue.
UseBetterTracks More dynamically animated tracks: much higher speed cap, scales with tank scale, can move backwards, stops animating when airborne. A value of 2 will allow the tracks to animate with Gravity 0
UseCustomLocomotion Uses tankext's version of the tank locomotion with no path overshoot, speed proportionate turning, and modifiable gravity. A value of 2 uses alternative floor detection that allows the tank to go over grating, glass, or clip brushes.
NormalizeAngle float NormalizeAngle(float angle) Converts an angle value to be within the usual boundaries of an angle. The physical angle will not change. -180 < x ≤ 180

From the TF2 VScript Examples page
PathMaker void PathMaker(handle player) Outputs paths for CreatePaths or CreateLoopPaths to console. Read the Path Maker section above for more info.
PrecacheParticle void PrecacheParticle(string name) Precaches a particle. This is only useful if a particle isn't precached when using DispatchParticleEffect or DispatchParticleEffectOn
PrecacheSound void PrecacheSound(string soundName) Wrapper for PrecacheSound. Detects if the sound is a file or a soundscript.
SetDestroyCallback void SetDestroyCallback(handle entity, handle callback) When the inputted entity dies, calls the inputted function.

From the TF2 Script Functions page
SetEntityColor void SetEntityColor(handle entity, int r, int g, int b, int a) Sets the entity's color and alpha. Alternatively, use a color/alpha input via AcceptInput to achieve the same effect.

From the SDK VScript Examples page
SetParentArray void SetParentArray(handle arrayChildren, handle parent, string attachment = null) All the entities listed in the array will be parented to the defined parent. Can be parented to one of the parent's attachments if defined.
SetPathConnection void SetPathConnection(handle path1, handle path2, handle pathAlt = null) Connects the first path_track to the second path_track. Optionally adds an alternative, toggleable path_track to the first path_track.
SetTankColor void SetTankColor(handle tank, string rgb) Colors the tank, tracks, and bomb mechanism. "255 127 0" would result in an orange tank.
SetTankModel void SetTankModel(handle tank, handle model) Accepts a single model path string or a table of multiple model path strings. The keyvalues for the table are: Tank, LeftTrack, RightTrack, Bomb.
SetValueOverrides void SetValueOverrides(handle table) Overrides any values that are allowed to be customized within the available tank types.
SpawnEntityFromTableFast void SpawnEntityFromTableFast(string classname, handle keyvalues) Experimental function to spawn entities without a perf warning. Has only been tested on entities with a model.
VectorAngles QAngle VectorAngles(Vector input) Converts the Vector to a QAngle. The QAngle is the angle towards the Vector.

From the TF2 VScript Examples page
